EPS VIP Pallet Shipper
For shipment by air of cold chain medications on Euro pallet EPAL at 2 to 8°C for up to 120 hours. These validated vacuum insulated shippers are the international industrial standard and are used on routes from Germany to South America, Africa or Australia. Depending on the configuration, it is typically used for 4C or 15 to 25C applications. Even at extreme outside temperatures, the prescribed internal temperature is guaranteed.
delta T offers pre-tempering and configuration for these systems.
EPS VIP Pallet Shipper 1200L Standard
Order No: B 1005 15
Dimensions:
Outer: 1400 x 1000 x 1600 mm
Inner (Payload): 1200 x 800 x 1275 mm
Weight: 44 kg
The SAFEST insulation packaging for a Euro pallet with cold chain medication for standard air freight from delta T. VACUUMPANEL ISOLATION (VIP) in the walls stabilizes the temperature at 2° to 8°C for 120 hours or more. Therefore, no in-flight cooling is necessary. The shipper also protects against environmental influences during unloading, reloading and further transport to the final destination.
This shipper is used for intercontinental routes to South America, Africa or Australia, where stopovers also occur.
Depending on the configuration, passive fluid elements such as 4 C accumulators, 18 C accumulators or freezer accumulators are used to maintain the prescribed internal temperature even at extreme external temperatures.

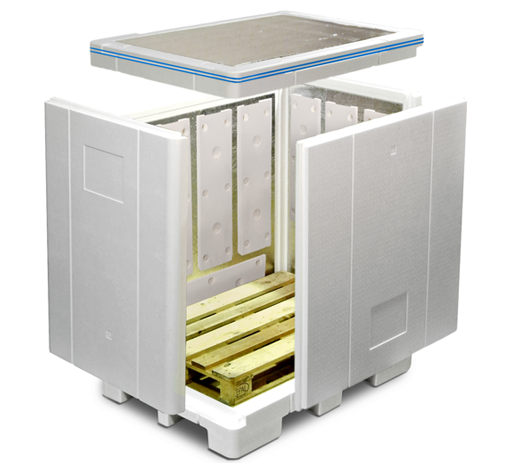

EPS VIP Pallet Shipper EPAL 1300L
Order No: B 1005 61
Dimensions:
Outer: 1400 x 1000 x 1600 mm
Inner (Payload): 1200 x 800 x 1350 mm
Weight: 44 kg
If the Euro pallet is loaded particularly high,
this system provides the SAFEST insulated packaging for shipping cold-chain medications via standard air freight. No other system on the market makes better use of the available height in the cargo hold. Thanks to the VACUUMPANEL INSULATION (VIP) in the walls, the temperature is stabilized at 2° to 8°C for 120 hours or more. Therefore, no refrigeration is necessary during the flight. The shipper also protects the contents from environmental influences during unloading, reloading, and further transport to the final destination.
This Shipper is used for intercontinental routes to South-
and North America, Africa, or Australia, with stopovers along the way. Depending on the configuration, passive cooling elements such as 4°C Accus, 18°C Accus, or Freezelements are used to maintain the payload’s internal temperature within regulatory limits, even under extreme external temperatures.

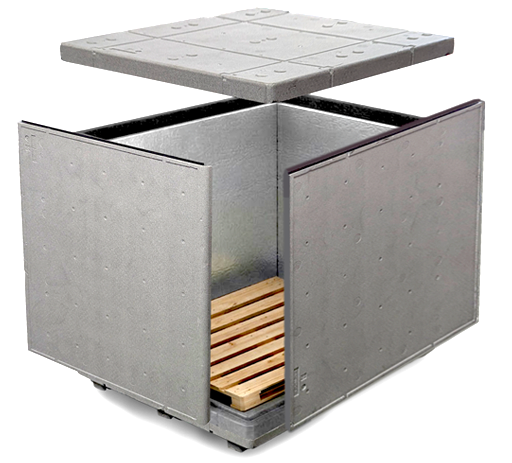

EPS VIP Pallet Shipper GMA 1600L
Order No: B 1010 20
Dimensions:
Outer: 1420 x 1215 x 1595 mm
Inner: 1244 x 1039 x 1313 mm
Weight: 55 kg
The SAFEST insulated packaging for a US pallet or GMA pallet containing cold-chain-required medications for standard air freight from delta T. The VACUUMPANEL INSULATION (VIP) in the walls stabilizes the temperature at 2° to 8°C for 120 hours or more. Therefore, no refrigeration is necessary during the flight. The shipper also protects the contents from environmental influences during unloading, reloading, and further transport to the final destination. This shipper is used for intercontinental routes to North and South America, Africa, or Australia, including those with stopovers.
Je nach Konfiguration werden passive Fluidelemente wie 4 C Akkus, 18 C Akkus oder Tiefkühlakkus eingesetzt, um die vorschriftsmäßige Innentemperatur des Payloads auch bei extremen Außentemperaturen zu halten. Aufgrund der größeren Stellfläche der GMA Palette kann 25% mehr Payload im Vergleich zum EPAL System temperaturgeführt versandt werden.
EPS VIP Pallet Shipper EPAL 1000L
Order number: B 1005 25
Dimensions:
Outer: 1400 x 1000 x 1420 mm
Inner (Payload): 1270 x 870 x 1110 mm
Weight: 43 kg
This slightly lower shipper has also been designed for medicines under CRT (Controlled Room Temperature) or Cold Chain conditions on Euro pallets (EPAL).
Apart from South America, logisticians and pharmaceutical companies use this version for shipments to Asia and the Middle East.
This qualified and validated system is characterized by its high temperature stability and optimal cost-benefit ratio and is very popular in tenders from large pharmaceutical manufacturers.
Depending on the configuration, passive fluid elements such as 4 C accumulators, 18 C accumulators or freezer accumulators are used to maintain the prescribed internal temperature even at extreme external temperatures.
EPS VIP Pallet Shipper EPAL 450L
Order number: B 1005 51
Dimensions:
Outer: 1400 x 1000 x 790 mm
Inner (Payload): 1270 x 870 x 480 mm
Weight: 25 kg
This low profile shipper can also be used in smaller aircraft.
This latest version of the EPS VIP Shipper is used on the same routes as its "big brothers" and was created to save money during transport and also to transport less payload optimally.
This shipper also maintains a constant temperature for up to 120 hours during the entire transport, depending on whether it is equipped with 4C elements or 18C elements.
Depending on the configuration, passive fluid elements such as 4 C accumulators, 18 C accumulators or freezer accumulators are used to maintain the prescribed internal temperature even at extreme external temperatures.
EPS VIP Line 66 L long range
Order No: B 1001 70
Dimensions:
Outer: 800 x 600 x 705 mm
Inner (Payload): 465 x 370 x 455 mm
Weight: 7 kg
The EPS insulated box with partial vacuum insulation is suitable for small aircrafts and is used for global airfreight medical shipments.
The underside feet guarantee easy loading by forklift.
The box achieves a validated transit time of 48 to 72 hours.
Depending on the configuration, passive fluid elements such as 4 C accumulators in combination with ICE accumulators or freezer accumulators are used to maintain the prescribed internal temperature even at extreme external temperatures.
EPS VIP line 50 L long range
Order No: B 1001 60
Dimensions:
Outer: 800 x 600 x 585 mm
Inner (Payload): 465 x 370 x 365 mm
Weight: 6 kg
This slightly smaller EPS insulated box with partial vacuum insulation is suitable for small aircrafts and is used for global airfreight medical shipments. It is used for global shipping of growth hormones for children.
The box achieves a validated transit time of 48 to 72 hours.
Depending on the configuration, passive fluid elements such as 4 C accumulators in combination with ICE accumulators or freezer accumulators are used to maintain the prescribed internal temperature even at extreme external temperatures.
EPS VIP Pallet Shipper 1200L Accu Lid
Order No: B 1005 14
Dimensions:
Outer: 1400 x 1000 x 1600 mm
Inner (Payload): 1200 x 800 x 1275 mm
Weight: 43 kg
The MOST SECURE insulated pallet shipper for a Euro pallet with cold chain medication for standard air freight from delta T. VACUUMPANEL ISOLATION (VIP) in the walls stabilizes the temperature at 2° to 8°C for 120 hours or more.
Additional cold packs can be placed in the lid of this version.
This offers the possibility to exchange the cooling elements also during the transport and thus to extend the transport time. The cooling chain of the transported goods is not interrupted.
The shipper also protects against environmental influences during unloading, reloading and further transport to the end point address. Depending on the configuration, passive fluid elements such as 4 C accumulators, 18 C accumulators or freezer accumulators are used to maintain the prescribed internal temperature even at extreme external temperatures
